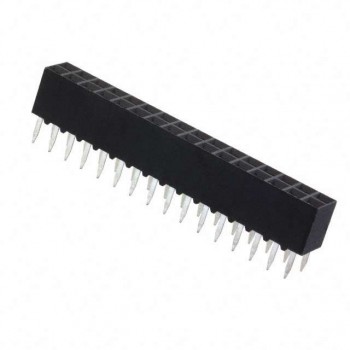

PS-20SD-D4TS1-1-F

Technical Details

• Series:PS
• Package:Bulk
• Part Status:Active
• Connector Type:Receptacle
• Contact Type:Female Socket
• Style:Board to Board
• Number of Positions:20
• Number of Positions Loaded:-
• Pitch - Mating:0.100" (2.54mm)
• Number of Rows:2
• Row Spacing - Mating:0.100" (2.54mm)
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull

• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:3.90µin (0.099µm)
• Insulation Color:Black
• Insulation Height:0.374" (9.50mm)
• Contact Length - Post:0.115" (2.92mm)
• Operating Temperature:-55°C ~ 85°C
• Material Flammability Rating:UL94 V-0
• Contact Finish - Post:Gold
• Mated Stacking Heights:-
• Ingress Protection:-
• Features:-
• Current Rating (Amps):3A
• Voltage Rating:-
