801-83-045-10-001101

Preci-Dip
In Stock: 138

Can ship immediately

Pricing:
  • 1$4.785
  • 200$4.2697

Quote It

Technical Details

  • Series:801
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Socket
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:45
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Insulation Color:Black
  • Insulation Height:0.276" (7.00mm)
  • Contact Length - Post:0.118" (3.00mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


831-83-044-10-230101

CONN SOCKET 44POS 0.079 GOLD PCB

831-83-044-10-230101 Datasheet
  • 1: $4.78550
  • 120: $4.49508

316-87-147-41-008101

CONN SOCKET 47POS 0.1 GOLD PCB

316-87-147-41-008101 Datasheet
  • 1: $4.78558
  • 120: $4.33858

316-87-147-41-009101

CONN SOCKET 47POS 0.1 GOLD PCB

316-87-147-41-009101 Datasheet
  • 1: $4.78575
  • 120: $4.56700

322-83-142-41-001101

CONN SOCKET 42POS 0.1 GOLD PCB

322-83-142-41-001101 Datasheet
  • 1: $4.78642
  • 120: $4.27108

422-83-242-41-001101

CONN SOCKET 42POS 0.1 GOLD PCB

422-83-242-41-001101 Datasheet
  • 1: $4.78642
  • 120: $4.27108

851-83-028-40-252101

CONN SOCKET 28P 0.05 GOLD SMD RA

851-83-028-40-252101 Datasheet
  • 1: $4.78683
  • 120: $4.49633

833-83-044-10-245101

CONN SOCKET 44POS 0.079 GOLD PCB

833-83-044-10-245101 Datasheet
  • 1: $4.78820
  • 200: $4.49755

831-83-037-10-273101

CONN SOCKET 37POS 0.079 GOLD PCB

831-83-037-10-273101 Datasheet
  • 1: $4.78842
  • 120: $4.27292

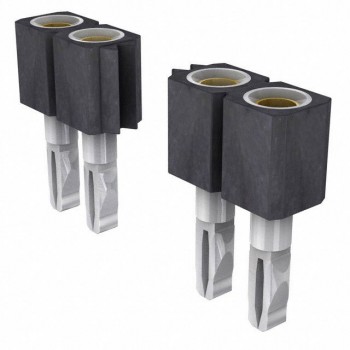

831-83-024-64-001101

CONN SOCKET 24POS 0.079 GOLD PCB

831-83-024-64-001101 Datasheet
  • 1: $4.78942
  • 120: $4.27375

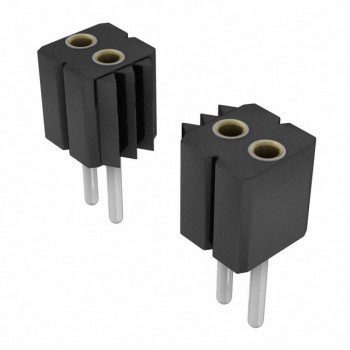

861-83-026-10-001101
