147378-6
TE Connectivity AMP Connectors- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 60POS 0.05 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet 147378-6 Datasheet
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
- 1$11.1518
- 600$10.4668
Quote It
Technical Details
- Series:AMPMODU System 50
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:60
- Number of Positions Loaded:All
- Pitch - Mating:0.050" (1.27mm)
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Insulation Color:Black
- Insulation Height:0.370" (9.40mm)
- Contact Length - Post:-
- Operating Temperature:-65°C ~ 105°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin-Lead
- Mated Stacking Heights:11.94mm, 13.08mm
- Ingress Protection:-
- Features:Pick and Place
- Current Rating (Amps):-
- Voltage Rating:30VAC
Related Products
CONN RCPT 2POS 0.1 TIN-LEAD PCB
- 1: $11.15280
- 50: $11.15100

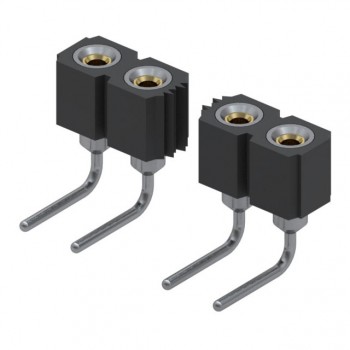

CONN RCPT 61POS 0.1 GOLD PCB R/A
399-43-161-10-003000 Datasheet- 1: $11.16000
- 10: $10.67109
- 25: $9.70091

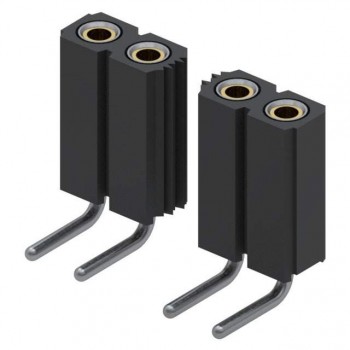

CONN RCPT 46POS 0.1 GOLD PCB R/A
