M80-4002605
Harwin- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 26POS 0.079 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet M80-4002605 Datasheet
-
ECAD Model
- Share
In Stock: 177
Can ship immediately
Pricing:
- 1$11.23918
- 98$10.37878
Quote It
Technical Details
- Series:Datamate J-Tek
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board or Cable
- Number of Positions:26
- Number of Positions Loaded:All
- Pitch - Mating:0.079" (2.00mm)
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Screw Lock
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:12.0µin (0.30µm)
- Insulation Color:Black
- Insulation Height:0.205" (5.20mm)
- Contact Length - Post:0.118" (3.00mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Gold
- Mated Stacking Heights:7.3mm, 7.55mm
- Ingress Protection:-
- Features:Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
- Current Rating (Amps):-
- Voltage Rating:120V
Related Products
CONN RCPT 56POS 0.1 GOLD PCB R/A
399-93-156-10-003000 Datasheet- 1: $11.24000
- 10: $10.74679
- 25: $9.76994

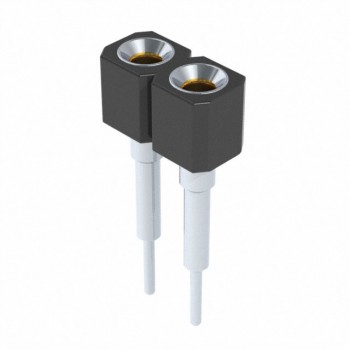

CONN RCPT 2POS 0.1 GOLD PCB
