B01-034-640-900
EDAC Inc.- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 36POS GOLD PCB R/A
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet B01-034-640-900 Datasheet
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
- 1$12.51
- 100$12.51
Quote It
Technical Details
- Series:B01
- Package:-
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:36
- Number of Positions Loaded:All
- Pitch - Mating:-
- Number of Rows:4
- Row Spacing - Mating:-
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Screw Lock
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Insulation Color:Black
- Insulation Height:0.750" (19.05mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Board Lock
- Current Rating (Amps):5A
- Voltage Rating:-
Related Products
CONN RCPT 15POS 0.1 TIN PCB
- 1: $12.51000
- 50: $12.37500
CONN RCPT 15POS 0.1 TIN-LEAD PCB
- 1: $12.51000
- 50: $12.34260

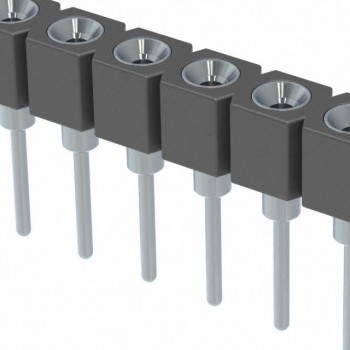

STANDRD SOLDER TAIL SIP SOCKET
