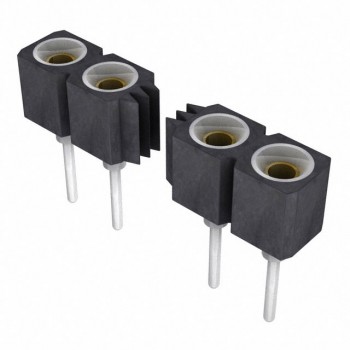

310-91-119-61-001000

Technical Details

• Series:310
• Package:Bulk
• Part Status:Active
• Connector Type:Receptacle
• Contact Type:Female Socket
• Style:Board to Board
• Number of Positions:19
• Number of Positions Loaded:All
• Pitch - Mating:0.100" (2.54mm)
• Number of Rows:1
• Row Spacing - Mating:-
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull

• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:10.0µin (0.25µm)
• Insulation Color:Black
• Insulation Height:0.110" (2.79mm)
• Contact Length - Post:0.125" (3.18mm)
• Operating Temperature:-55°C ~ 125°C
• Material Flammability Rating:UL94 V-0
• Contact Finish - Post:Tin-Lead
• Mated Stacking Heights:-
• Ingress Protection:-
• Features:-
• Current Rating (Amps):3A
• Voltage Rating:100V, 150VDC
