6-532955-6
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 100P 0.1 GOLD PCB R/A
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet 6-532955-6 Datasheet
-
ECAD Model
- Share
In Stock: 193
Can ship immediately
Pricing:
- 1$15.68652
- 270$14.6453
Quote It
Technical Details
- Series:AMPMODU Mod II
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:100
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Insulation Color:Black
- Insulation Height:0.238" (6.05mm)
- Contact Length - Post:0.115" (2.92mm)
- Operating Temperature:-
- Material Flammability Rating:-
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Guide Pin Ears
- Current Rating (Amps):-
- Voltage Rating:-
Related Products

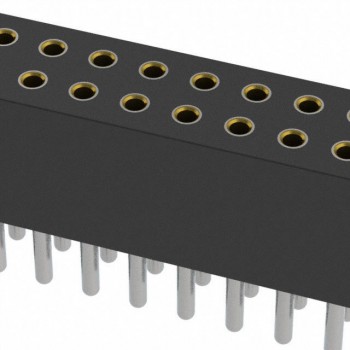

CONN SOCKET 39POS 0.1 GOLD PCB
- 1: $15.68700
- 50: $15.47400

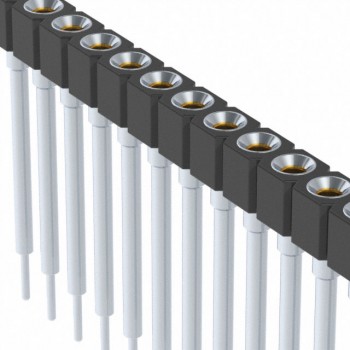

CONN RCPT 51POS 0.1 GOLD PCB
- 1: $15.68760
- 50: $15.13000

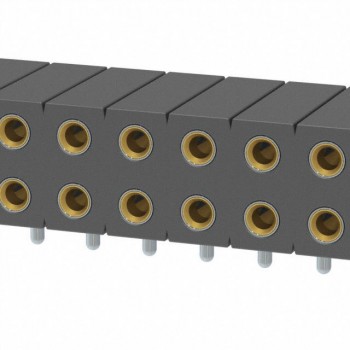

CONN RCPT 51POS 0.1 GOLD PCB
