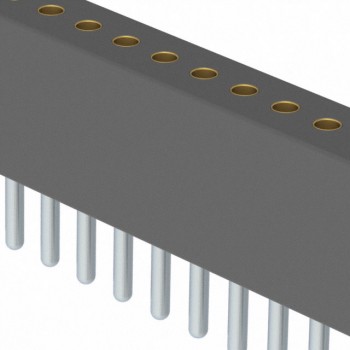

851-93-033-10-002000
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 33POS 0.05 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet 851-93-033-10-002000 Datasheet
-
ECAD Model
- Share
In Stock: 139
Can ship immediately
Pricing:
- 1$16.215
- 50$15.8896
Quote It
Technical Details
- Series:851
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:33
- Number of Positions Loaded:All
- Pitch - Mating:0.050" (1.27mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Insulation Color:Black
- Insulation Height:0.185" (4.70mm)
- Contact Length - Post:0.115" (2.92mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin-Lead
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):3A
- Voltage Rating:-
