322-13-153-41-001000
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 56POS 0.1 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet 322-13-153-41-001000 Datasheet
-
ECAD Model
- Share
In Stock: 128
Can ship immediately
Pricing:
- 1$20.856
- 50$19.437
Quote It
Technical Details
- Series:322
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:56
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Wire Wrap
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Insulation Color:Black
- Insulation Height:0.110" (2.79mm)
- Contact Length - Post:0.370" (9.40mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:-
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):3A
- Voltage Rating:-
Related Products
CONN RCPT 62POS 0.1 GOLD PCB
- 1: $20.85760
- 50: $19.86160
CONN RCPT 62POS 0.1 GOLD PCB
- 1: $20.85760
- 50: $19.86160

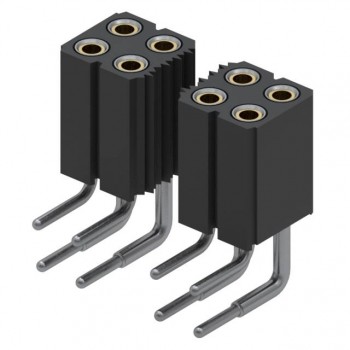

CONN RCPT 88POS 0.1 GOLD PCB R/A
