801-13-051-10-007000
Mill-Max- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 51POS 0.1 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet 801-13-051-10-007000 Datasheet
-
ECAD Model
- Share
In Stock: 167
Can ship immediately
Pricing:
- 1$28.524
- 50$25.2736
Quote It
Technical Details
- Series:801
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:51
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder Cup
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Insulation Color:Black
- Insulation Height:0.110" (2.79mm)
- Contact Length - Post:0.340" (8.64mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):4.5A
- Voltage Rating:-
Related Products
STANDARD SOCKET HEADER
- 1: $28.53900
CONN SOCKET 64POS 0.1 GOLD PCB
- 1: $28.55255
- 51: $27.99902
CONN SOCKET 64POS 0.1 GOLD PCB
- 1: $28.55255
- 51: $27.99902

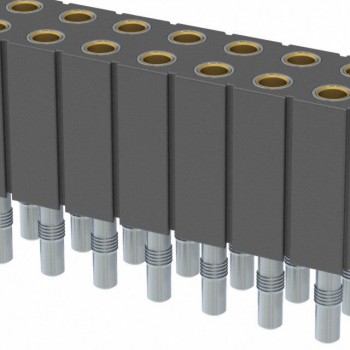

CONN RCPT 94POS 0.1 GOLD PCB
