0009623112
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 11POS 0.156 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
-
ECAD Model
- Share
In Stock: 141
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:KK396, 2145
- Package:Tray
- Part Status:Obsolete
- Connector Type:Receptacle, Bottom Entry
- Contact Type:Female Socket
- Style:Board to Board or Cable
- Number of Positions:11
- Number of Positions Loaded:All
- Pitch - Mating:0.156" (3.96mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Insulation Color:White
- Insulation Height:0.449" (11.40mm)
- Contact Length - Post:0.160" (4.06mm)
- Operating Temperature:-40°C ~ 80°C
- Material Flammability Rating:UL94 V-2
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Board Hooks
- Current Rating (Amps):4A
- Voltage Rating:600V
Related Products
CONN RCPT 12POS 0.156 GOLD PCB
Call for price
CONN RCPT 4POS 0.156 GOLD PCB
Call for price
CONN RCPT 5POS 0.156 GOLD PCB
Call for price
CONN RCPT 6POS 0.156 GOLD PCB
Call for price
CONN RCPT 9POS 0.156 GOLD PCB
Call for price

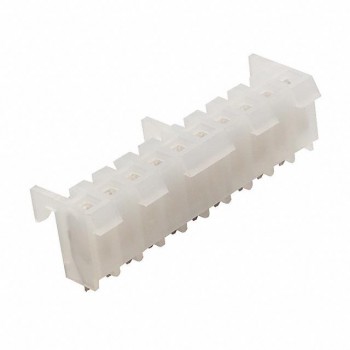

CONN RCPT 10POS 0.156 GOLD PCB
Call for price

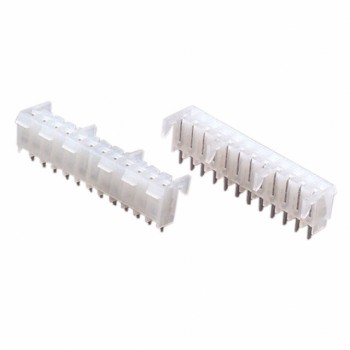

CONN RCPT 12POS 0.156 GOLD PCB
