In Stock: 164

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:Micro-Strip
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:160
  • Number of Positions Loaded:All
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Insulation Color:Natural
  • Insulation Height:0.315" (8.00mm)
  • Contact Length - Post:0.125" (3.18mm)
  • Operating Temperature:-65°C ~ 125°C
  • Material Flammability Rating:-
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Ground Bus (Plane), Mounting Flange
  • Current Rating (Amps):-
  • Voltage Rating:30VAC

Related Products


5149032-1

CONN RCPT 100POS 0.05 GOLD PCB

5149032-1 Datasheet

Call for price


5149032-2

CONN RCPT 120POS 0.05 GOLD PCB

5149032-2 Datasheet

Call for price


5536254-2

CONN RCPT 60POS 0.05 GOLD PCB

5536254-2 Datasheet

Call for price


5536254-3

CONN RCPT 80POS 0.05 GOLD PCB

5536254-3 Datasheet

Call for price


5536254-4

CONN RCPT 100POS 0.05 GOLD PCB

5536254-4 Datasheet

Call for price


5536254-5

CONN RCPT 120POS 0.05 GOLD PCB

5536254-5 Datasheet

Call for price


5536254-6

CONN RCPT 140POS 0.05 GOLD PCB

5536254-6 Datasheet

Call for price


5536254-8

CONN RCPT 180POS 0.05 GOLD PCB

5536254-8 Datasheet

Call for price


5536255-1

CONN RCPT 40POS 0.05 GOLD PCB

5536255-1 Datasheet

Call for price

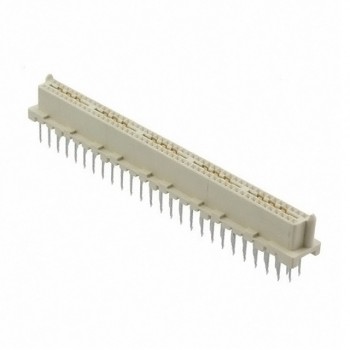

5536255-4
