0009482029

Woodhead - Molex
In Stock: 154

Can ship immediately

Pricing:
  • 1$0.16544
  • 3,157$0.16544

Quote It

Technical Details

  • Series:KK396, 41815
  • Package:Tray
  • Part Status:Obsolete
  • Connector Type:Receptacle, Bottom Entry
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:2
  • Number of Positions Loaded:All
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp



  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Insulation Color:Natural
  • Insulation Height:0.449" (11.40mm)
  • Contact Length - Post:0.125" (3.18mm)
  • Operating Temperature:-40°C ~ 105°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Hooks
  • Current Rating (Amps):4.5A
  • Voltage Rating:600V

Related Products


0009482069

CONN RCPT 6POS 0.156 TIN PCB

0009482069 Datasheet
  • 1: $0.49280
  • 1001: $0.49280

0009482109

CONN RCPT 10POS 0.156 TIN PCB

0009482109 Datasheet
  • 1: $1.17192
  • 616: $1.07940

0009482129

CONN RCPT 12POS 0.156 TIN PCB

0009482129 Datasheet
  • 1: $1.68530
  • 462: $1.68530

0009521026

CONN RCPT 2P 0.156 TIN EDGE MNT

0009521026 Datasheet

Call for price


0009521033

CONN RCPT 3POS 0.156 TIN PCB

0009521033 Datasheet

Call for price


0009521035

CONN RCPT 3POS 0.156 TIN PCB

0009521035 Datasheet

Call for price

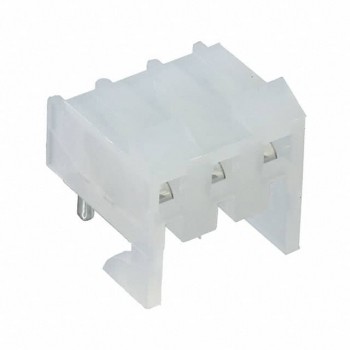

0009521036

CONN RCPT 3P 0.156 TIN EDGE MNT

0009521036 Datasheet

Call for price


0009521041

CONN RCPT 4P 0.156 TIN EDGE MNT

0009521041 Datasheet

Call for price

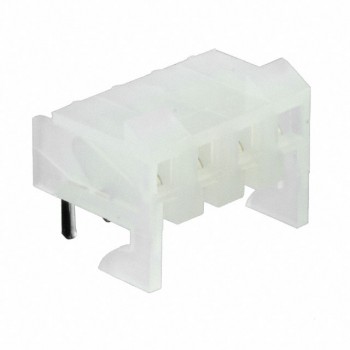

0009521046

CONN RCPT 4P 0.156 TIN EDGE MNT

0009521046 Datasheet

Call for price

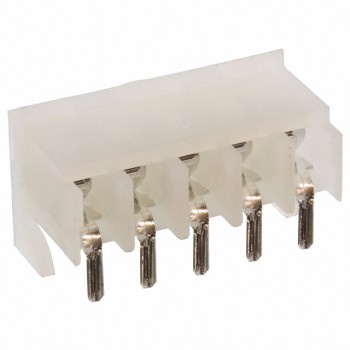

0009521056
