0009623132

Woodhead - Molex
In Stock: 172

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:KK396, 2145
  • Package:Tray
  • Part Status:Obsolete
  • Connector Type:Receptacle, Bottom Entry
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:13
  • Number of Positions Loaded:All
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Insulation Color:White
  • Insulation Height:0.449" (11.40mm)
  • Contact Length - Post:0.160" (4.06mm)
  • Operating Temperature:-40°C ~ 80°C
  • Material Flammability Rating:UL94 V-2
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Hooks
  • Current Rating (Amps):4A
  • Voltage Rating:600V

Related Products


0009623133

CONN RCPT 13POS 0.156 GOLD PCB

0009623133 Datasheet

Call for price


0009623141

CONN RCPT 14P 0.156 GOLD EDGE MT

0009623141 Datasheet

Call for price


0009623142

CONN RCPT 14POS 0.156 GOLD PCB

0009623142 Datasheet

Call for price


0009623151

CONN RCPT 15P 0.156 GOLD EDGE MT

0009623151 Datasheet

Call for price


0009623152

CONN RCPT 15POS 0.156 GOLD PCB

0009623152 Datasheet

Call for price


0009623153

CONN RCPT 15POS 0.156 GOLD PCB

0009623153 Datasheet

Call for price


0009624027

CONN RCPT 2P 0.156 GOLD EDGE MNT

0009624027 Datasheet

Call for price


0009624028

CONN RCPT 2POS 0.156 GOLD PCB

0009624028 Datasheet

Call for price


0009624029

CONN RCPT 2POS 0.156 GOLD PCB

0009624029 Datasheet

Call for price

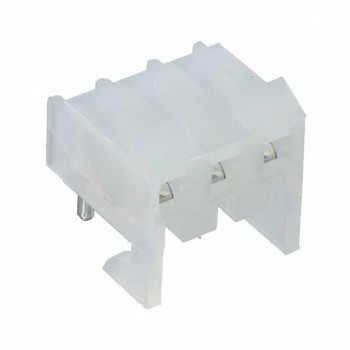

0009624037
