0490450011
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 24P 0.02 GOLD SMD R/A
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet 0490450011 Datasheet
-
ECAD Model
- Share
In Stock: 198
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:49045
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Connector Type:Receptacle
- Contact Type:-
- Style:Board to Board
- Number of Positions:24
- Number of Positions Loaded:All
- Pitch - Mating:0.020" (0.50mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Detent Lock
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:-
- Insulation Color:Black
- Insulation Height:0.118" (3.00mm)
- Contact Length - Post:-
- Operating Temperature:-
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:-
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Shielded, Shutter
- Current Rating (Amps):-
- Voltage Rating:-
Related Products

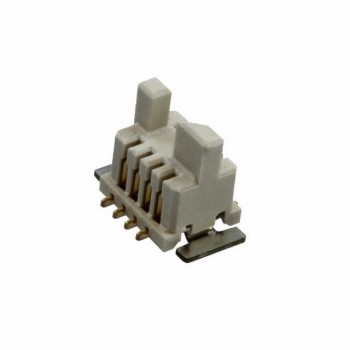

CONN RCPT 12POS 0.079 GOLD SMD
Call for price

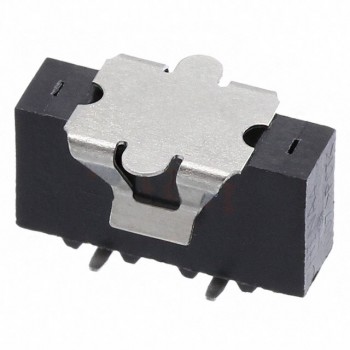

CONN RCPT 34POS 0.079 SMD
