SSM-105-S-SV-P
Samtec, Inc.- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 5POS 0.1 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
-
ECAD Model
- Share
In Stock: 343
Can ship immediately
Pricing:
- 1$3.31
Quote It
Technical Details
- Series:SSM
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle, Pass Through
- Contact Type:Female Socket
- Style:Board to Board or Cable
- Number of Positions:5
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Insulation Color:Black
- Insulation Height:0.290" (7.37mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:-
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Pick and Place
- Current Rating (Amps):5.2A per Contact
- Voltage Rating:405VAC, 572VDC
Related Products
CONN RCPT 10POS 0.1 GOLD PCB
- 1: $3.21000
CONN RCPT 10POS 0.1 GOLD PCB
- 1: $3.18000
CONN RCPT 8POS 0.05 GOLD SMD R/A
CLP-104-02-L-DH-TR Datasheet- 1: $2.59000
- 850: $1.34120
- 1700: $1.24540
CONN RCPT 6POS 0.1 GOLD SMD
- 1: $3.06000
CONN RCPT 10P 0.05 GOLD SMD R/A
CLP-105-02-L-DH-TR Datasheet- 1: $2.60000
- 1275: $1.35200
- 2550: $1.30000

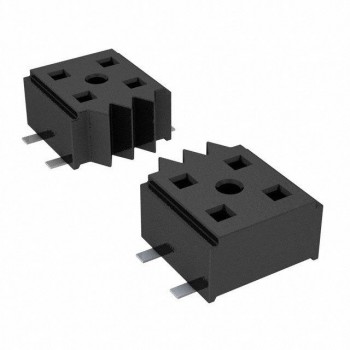

CONN RCPT 16POS 0.079 GOLD SMD
