SQT-107-01-LM-D
Samtec, Inc.- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 14POS 0.079 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
-
ECAD Model
- Share
In Stock: 289
Can ship immediately
Pricing:
- 1$3.76
Quote It
Technical Details
- Series:SQT
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board or Cable
- Number of Positions:14
- Number of Positions Loaded:All
- Pitch - Mating:0.079" (2.00mm)
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.250" (6.35mm)
- Contact Length - Post:0.090" (2.29mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):5.1A per Contact
- Voltage Rating:-
Related Products
CONN RCPT 15P 0.079 GOLD PCB R/A
- 1: $3.79000
CONN RCPT 18POS 0.079 GOLD SMD
- 1: $3.84000
CONN RCPT 8POS 0.1 GOLD SMD
- 1: $3.48000
CONN RCPT 9POS 0.05 GOLD SMD
- 1: $3.66000
CONN RCPT 4POS 0.1 GOLD SMD
- 1: $3.51000
CONN RCPT 20POS 0.079 GOLD SMD

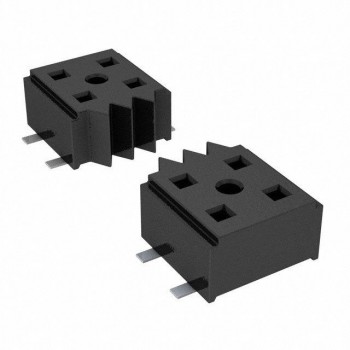

CLT-110-02-F-D-K-TR Datasheet- 1: $2.78000
