SSW-107-02-S-D-RA-003
Samtec, Inc.- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 14POS 0.1 GOLD PCB R/A
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
-
ECAD Model
- Share
In Stock: 302
Can ship immediately
Pricing:
- 1$3.79
Quote It
Technical Details
- Series:SSW
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board or Cable
- Number of Positions:14
- Number of Positions Loaded:13
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Insulation Color:Black
- Insulation Height:0.195" (4.95mm)
- Contact Length - Post:0.100" (2.54mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):5.7A per Contact
- Voltage Rating:-
Related Products
CONN RCPT 14POS 0.1 GOLD PCB R/A
- 1: $3.79000
CONN RCPT 14POS 0.1 GOLD PCB R/A
- 1: $3.79000
CONN RCPT 14POS 0.1 GOLD PCB R/A
- 1: $3.79000
CONN RCPT 16POS 0.1 GOLD PCB
- 1: $3.76000
CONN RCPT 30POS 0.1 TIN PCB
- 1: $3.79000
CONN RCPT 14POS 0.079 GOLD SMD
- 1: $3.91000
CONN RCPT 14POS 0.039 GOLD SMD

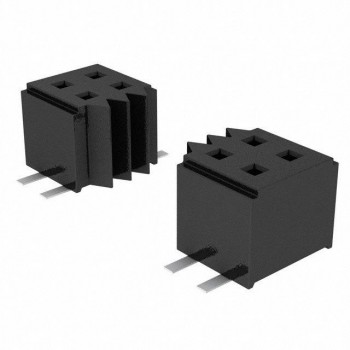

CLM-107-02-F-D-K-TR Datasheet- 1: $2.83000
