ESW-111-34-L-D
Samtec, Inc.- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 22POS 0.1 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
-
ECAD Model
- Share
In Stock: 144
Can ship immediately
Pricing:
- 1$6.06
Quote It
Technical Details
- Series:ESW
- Package:Tube
- Part Status:Active
- Connector Type:Elevated Socket
- Contact Type:Forked
- Style:Board to Board
- Number of Positions:22
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.635" (16.13mm)
- Contact Length - Post:0.280" (7.11mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):5.2A per Contact
- Voltage Rating:550VAC
Related Products

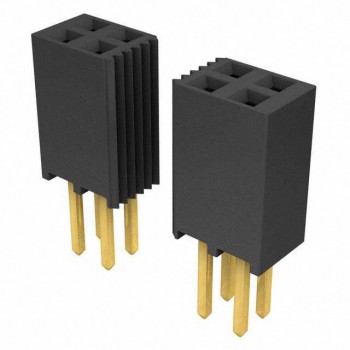

CONN SKT .100" 22POS
- 1: $6.06000

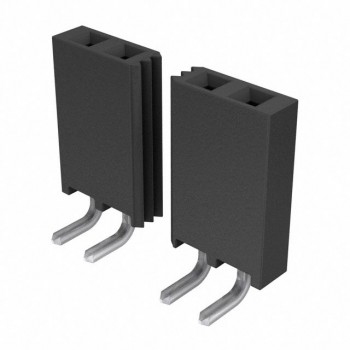

CONN SOCKET 18POS 0.1 GOLD PCB
- 1: $6.08000

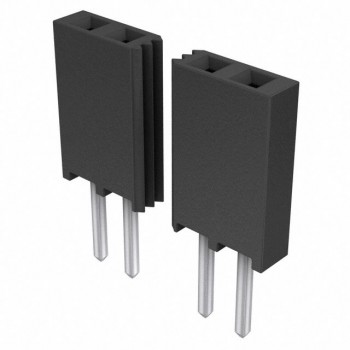

CONN SOCKET 18POS 0.1 GOLD PCB
