JN1HS04MK1-R
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT MALE 4P SOLDER CUP
- CategoryCircular Connectors
- Datasheet JN1HS04MK1-R Datasheet
-
ECAD Model
- Share
In Stock: 276
Can ship immediately
Pricing:
- 1$15.95
- 10$14.5
- 25$14.1376
- 50$13.05
- 100$12.325
- 250$11.23752
- 500$10.5125
- 1,000$9.6425
Quote It
Technical Details
- Series:JN1
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle, Male Pins
- Number of Positions:4 (3 + PE)
- Shell Size - Insert:S
- Shell Size, MIL:-
- Mounting Type:Free Hanging (In-Line)
- Mounting Feature:-
- Termination:Solder Cup
- Fastening Type:Push-Twist
- Orientation:N (Normal)
- Shell Material:Synthetic Resin
- Shell Finish:-
- Contact Finish - Mating:Silver
- Color:Black
- Ingress Protection:IP67 - Dust Tight, Waterproof
- Material Flammability Rating:-
- Features:Backshell
- Shielding:-
- Current Rating (Amps):5A
- Voltage Rating:200VAC
- Cable Opening:-
- Operating Temperature:-20°C ~ 125°C
Related Products

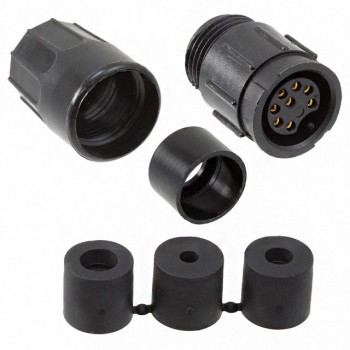

CONN JACK FMALE 7P SOLDER CUP
