AE775W14-5SY

PEI-Genesis
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionCONN PLUG FMALE 5POS GOLD CRIMP
  • CategoryCircular Connectors
  • ECAD Model
  • Share
In Stock: 161

Can ship immediately

Pricing:
  • 1$37.31

Quote It

Technical Details

  • Series:MIL-DTL-26482 Series II
  • Package:Box
  • Part Status:Active
  • Connector Type:Plug, Female Sockets
  • Number of Positions:5
  • Shell Size - Insert:14-5
  • Shell Size, MIL:-
  • Mounting Type:Free Hanging (In-Line)
  • Mounting Feature:-
  • Termination:Crimp
  • Fastening Type:Bayonet Lock
  • Orientation:Y



  • Shell Material:Aluminum
  • Shell Finish:Olive Drab Cadmium
  • Contact Finish - Mating:Gold
  • Color:Olive Drab
  • Ingress Protection:IP67 - Dust Tight, Waterproof
  • Material Flammability Rating:-
  • Features:-
  • Shielding:Shielded
  • Current Rating (Amps):13A
  • Voltage Rating:1000VDC
  • Cable Opening:-
  • Operating Temperature:-55°C ~ 175°C

Related Products


AE775W14-5SW

CONN PLUG FMALE 5POS GOLD CRIMP

  • 1: $37.31000

AE156T15B15BB

CONN RCPT FMALE 15POS CRIMP

  • 1: $37.34000

AE166T15B15BA

CONN RCPT FMALE 15POS CRIMP

  • 1: $37.34000

MS24264R14B15PN

CONN RCPT MALE 15POS GOLD CRIMP

MS24264R14B15PN Datasheet
  • 1: $37.35000
  • 10: $32.67859
  • 25: $29.49428

EYG.0B.305.CLN

CONN RCPT FMALE 5POS GOLD SOLDER

EYG.0B.305.CLN Datasheet
  • 1: $37.73000

AE105E15B5BB

CONN RCPT FMALE 5POS CRIMP

  • 1: $37.39000

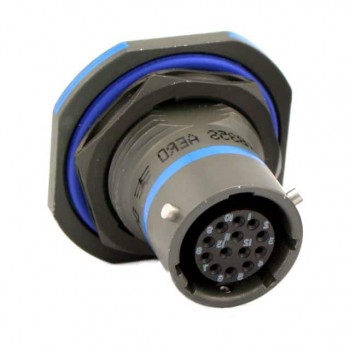

AE105E15B5B

CONN RCPT FMALE 5POS CRIMP

  • 1: $37.39000

AE105E15B5BA

CONN RCPT FMALE 5POS CRIMP

  • 1: $37.39000

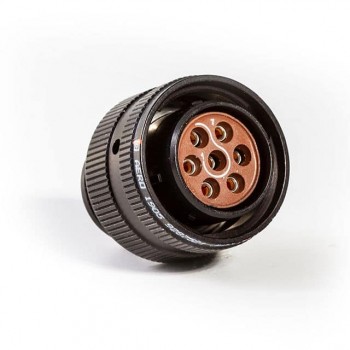

AE664R12B3SN
