MS3476W16-14PY

PEI-Genesis
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionCONN PLUG MALE 14POS GOLD CRIMP
  • CategoryCircular Connectors
  • ECAD Model
  • Share
In Stock: 247

Can ship immediately

Pricing:
  • 1$37.64

Quote It

Technical Details

  • Series:Military, MIL-DTL-26482 Series II
  • Package:Box
  • Part Status:Active
  • Connector Type:Plug, Male Pins
  • Number of Positions:14
  • Shell Size - Insert:16-14
  • Shell Size, MIL:-
  • Mounting Type:Free Hanging (In-Line)
  • Mounting Feature:-
  • Termination:Crimp
  • Fastening Type:Bayonet Lock
  • Orientation:Y



  • Shell Material:Aluminum
  • Shell Finish:Olive Drab Cadmium
  • Contact Finish - Mating:Gold
  • Color:Olive Drab
  • Ingress Protection:IP67 - Dust Tight, Waterproof
  • Material Flammability Rating:-
  • Features:-
  • Shielding:Shielded
  • Current Rating (Amps):7.5A, 23A
  • Voltage Rating:600VDC
  • Cable Opening:-
  • Operating Temperature:-55°C ~ 175°C

Related Products


MS24265R12B3SN

CONN RCPT FMALE 3POS GOLD CRIMP

MS24265R12B3SN Datasheet
  • 1: $37.64000
  • 10: $34.33736
  • 25: $31.33588

AE299E12F3A

CONN RCPT MALE 3POS CRIMP

  • 1: $37.64000

ECG.1B.306.CLN

CONN RCPT FMALE 6POS GOLD SOLDER

ECG.1B.306.CLN Datasheet
  • 1: $37.67000

AE770L14-12PW

CONN RCPT MALE 12POS GOLD CRIMP

  • 1: $37.68000

AE770W14-12P

CONN RCPT MALE 12POS GOLD CRIMP

  • 1: $37.68000

AE770L14-12P

CONN RCPT MALE 12POS GOLD CRIMP

  • 1: $37.68000

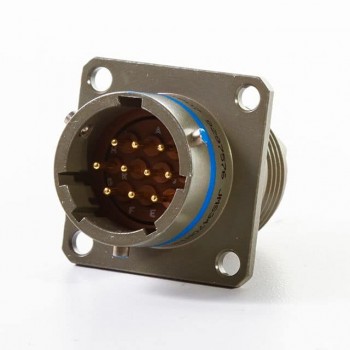

AE770W14-12PX

CONN RCPT MALE 12POS GOLD CRIMP

  • 1: $37.68000

AE770W14-12PW

CONN RCPT MALE 12POS GOLD CRIMP

  • 1: $37.68000

AE770L14-12PX

CONN RCPT MALE 12POS GOLD CRIMP

  • 1: $37.68000

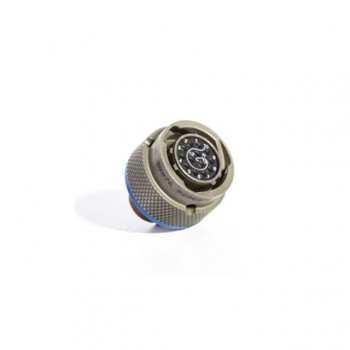

AE273T8F35P
