AE770W14-15SW

PEI-Genesis
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionCONN RCPT FMALE 15POS CRIMP
  • CategoryCircular Connectors
  • ECAD Model
  • Share
In Stock: 208

Can ship immediately

Pricing:
  • 1$39.73

Quote It

Technical Details

  • Series:MIL-DTL-26482 Series II
  • Package:Box
  • Part Status:Active
  • Connector Type:Receptacle, Female Socket
  • Number of Positions:15
  • Shell Size - Insert:14-15
  • Shell Size, MIL:-
  • Mounting Type:Panel Mount
  • Mounting Feature:Flange
  • Termination:Crimp
  • Fastening Type:Bayonet Lock
  • Orientation:W



  • Shell Material:Aluminum
  • Shell Finish:Olive Drab Cadmium
  • Contact Finish - Mating:Gold
  • Color:Olive Drab
  • Ingress Protection:IP67 - Dust Tight, Waterproof
  • Material Flammability Rating:-
  • Features:-
  • Shielding:Shielded
  • Current Rating (Amps):7.5A, 13A
  • Voltage Rating:600VDC
  • Cable Opening:-
  • Operating Temperature:-55°C ~ 175°C

Related Products


AE770W14-15SZ

CONN RCPT FMALE 15POS CRIMP

  • 1: $39.73000

AE770W14-15SX

CONN RCPT FMALE 15POS CRIMP

  • 1: $39.73000

MS24264R14B15S6

CONN RCPT FMALE 15POS CRIMP

MS24264R14B15S6 Datasheet
  • 1: $39.74000
  • 10: $36.24882
  • 25: $33.08010

AE770L14-15SW

CONN RCPT FMALE 15POS CRIMP

  • 1: $39.74000

AE770L14-15S

CONN RCPT FMALE 15POS CRIMP

  • 1: $39.74000

AE770L14-15SZ

CONN RCPT FMALE 15POS CRIMP

  • 1: $39.74000

AE770L14-15SY

CONN RCPT FMALE 15POS CRIMP

  • 1: $39.74000

AE770L14-15SX

CONN RCPT FMALE 15POS CRIMP

  • 1: $39.74000

AE196E17B99B

CONN RCPT FMALE 23POS CRIMP

  • 1: $39.74000

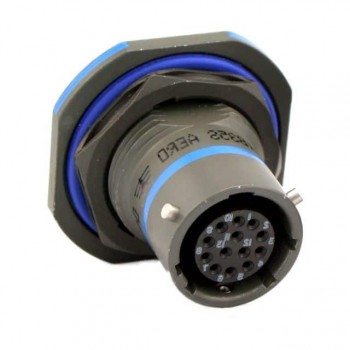

AE105E17B99BA
