W8C82-6SG-528
Switchcraft / Conxall
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT FMALE 6P GOLD SLDR CUP
- CategoryCircular Connectors
- Datasheet W8C82-6SG-528 Datasheet
-
ECAD Model
- Share
In Stock: 136
Can ship immediately
Pricing:
- 1$15.46
- 10$14.35167
- 25$12.88018
- 50$12.512
- 100$11.25652
Quote It
Technical Details
- Series:Mini-Con-X®
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle, Female Sockets
- Number of Positions:6 (4 + 2 Power)
- Shell Size - Insert:-
- Shell Size, MIL:-
- Mounting Type:Free Hanging (In-Line)
- Mounting Feature:-
- Termination:Solder Cup
- Fastening Type:Bayonet Lock
- Orientation:Keyed
- Shell Material:Thermoplastic
- Shell Finish:-
- Contact Finish - Mating:Gold
- Color:Black
- Ingress Protection:IP67 - Dust Tight, Waterproof
- Material Flammability Rating:-
- Features:Backshell, UV Resistant
- Shielding:Unshielded
- Current Rating (Amps):4A, 10A
- Voltage Rating:125V
- Cable Opening:0.260" ~ 0.285" (6.60mm ~ 7.24mm)
- Operating Temperature:-40°C ~ 85°C
Related Products

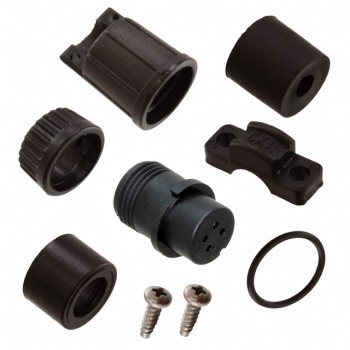

CIRCULAR LARGE SIZE FIELD INSTAL
- 1: $15.55000
- 10: $14.28004
- 25: $13.96245

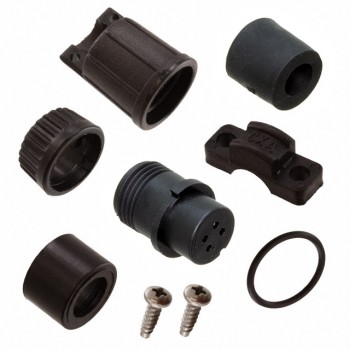

CIRCULAR LARGE SIZE FIELD INSTAL
