W6382-5SG-P-528

Switchcraft / Conxall
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionCONN PLUG FMALE 5POS SOLDER CUP
  • CategoryCircular Connectors
  • ECAD Model
  • Share
In Stock: 185

Can ship immediately

Pricing:
  • 1$20.79

Quote It

Technical Details

  • Series:Mini-Con-X® Insta-Click™
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Plug, Female Sockets
  • Number of Positions:5
  • Shell Size - Insert:-
  • Shell Size, MIL:-
  • Mounting Type:Free Hanging (In-Line)
  • Mounting Feature:-
  • Termination:Solder Cup
  • Fastening Type:Bayonet Lock
  • Orientation:Keyed



  • Shell Material:Thermoplastic
  • Shell Finish:-
  • Contact Finish - Mating:Gold
  • Color:Black
  • Ingress Protection:IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
  • Material Flammability Rating:-
  • Features:Backshell, Coupling Nut, UV Resistant
  • Shielding:Unshielded
  • Current Rating (Amps):7.5A
  • Voltage Rating:300VAC/DC
  • Cable Opening:0.260" ~ 0.280" (6.60mm ~ 7.11mm)
  • Operating Temperature:-40°C ~ 85°C

Related Products


W6282-6SG-P-528

CONN PLUG FMALE 6POS SOLDER CUP

  • 1: $20.79000

PXMBNI08FPM04PPC

CONN RCPT MALE 4POS GOLD SOLDER

  • 1: $20.83000

W3282-10PG-535

CONN PLUG MALE 10POS SOLDER CUP

  • 1: $20.94000

W16982-7SG-P-522

CONN PLUG FMALE 7POS GOLD SOLDER

  • 1: $20.94000

09151072702

CONN FMALE INSERT 7P SOLDER CUP

09151072702 Datasheet
  • 1: $21.09000
  • 5: $20.51600

JR16WP-7P(31)

CONN PLUG MALE 7P SILV SLDR CUP

JR16WP-7P(31) Datasheet
  • 1: $21.64000

W6282-8SG-P-528

CONN PLUG FMALE 8POS SOLDER CUP

  • 1: $21.74000

FIC-M12M5

CONN RCPT MALE 5P WIRE LEADS

  • 1: $22.00000

09151122622

CONN MALE INSERT 12P SOLDER CUP

  • 1: $22.02000

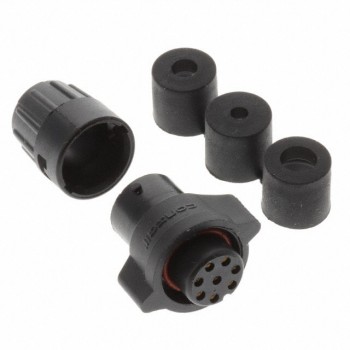

W6282-8SG-P-3DC
