TXD2SA-12V-1
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOS DPDT 10MA 12VDC
- Category
- Datasheet TXD2SA-12V-1 Datasheet
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
- 1$3.94
- 40$3.94
Quote It
Technical Details
- Series:TX-D
- Package:Tube
- Part Status:Active
- Mounting Type:Surface Mount
- Coil Voltage:12VDC
- Contact Form:DPDT (2 Form C)
- Contact Rating (Current):10 mA
- Switching Voltage:10VDC - Max
- Coil Current:16.7 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:Gull Wing
- Seal Rating:Sealed - Fully
- Coil Insulation:-
- Must Operate Voltage:9 VDC
- Must Release Voltage:1.2 VDC
- Operate Time:4 ms
- Release Time:4 ms
- Operating Temperature:-40°C ~ 85°C
- Contact Material:Silver Palladium (AgPd), Gold (Au)
- Relay Type:General Purpose

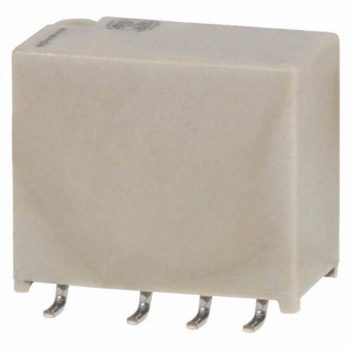

Related Products
