DS1E-M-DC1.5V-R

Panasonic
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionRELAY GEN PURPOSE SPDT 2A 1.5VDC
  • Category
  • Datasheet DS1E-M-DC1.5V-R Datasheet
  • ECAD Model
  • Share
In Stock: 112

Can ship immediately

Pricing:
  • 1$4.37
  • 50$4.37

Quote It

Technical Details

  • Series:DS
  • Package:Box
  • Part Status:Active
  • Mounting Type:Through Hole
  • Coil Voltage:1.5VDC
  • Contact Form:SPDT (1 Form C)
  • Contact Rating (Current):2 A
  • Switching Voltage:250VAC, 220VDC - Max
  • Coil Current:267 mA
  • Coil Type:Non Latching
  • Features:Reverse Polarity



  • Termination Style:PC Pin
  • Seal Rating:Sealed - Fully
  • Coil Insulation:-
  • Must Operate Voltage:1.05 VDC
  • Must Release Voltage:0.15 VDC
  • Operate Time:10 ms
  • Release Time:5 ms
  • Operating Temperature:-40°C ~ 70°C
  • Contact Material:Silver (Ag), Gold (Au)
  • Relay Type:General Purpose

Related Products


DS1E-M-DC24V-R

RELAY GEN PURPOSE SPDT 2A 24VDC

DS1E-M-DC24V-R Datasheet
  • 1: $4.37000
  • 50: $4.37000

DS1E-M-DC9V-R

RELAY GEN PURPOSE SPDT 2A 9VDC

DS1E-M-DC9V-R Datasheet
  • 1: $4.37000
  • 50: $4.37000

TXD2SA-2M-1.5V

RELAY GEN PURPOSE DPDT 1A 1.5VDC

TXD2SA-2M-1.5V Datasheet
  • 1: $4.40000
  • 40: $4.40000

TXS2-L2-1.5V

RELAY GEN PURPOSE DPDT 1A 1.5VDC

TXS2-L2-1.5V Datasheet
  • 1: $4.40000
  • 40: $4.40000

TXS2-L2-6V

RELAY GEN PURPOSE DPDT 1A 6VDC

TXS2-L2-6V Datasheet
  • 1: $4.40000
  • 40: $4.40000

TXS2SA-4.5V-1

RELAY GEN PURP DPDT 10MA 4.5VDC

TXS2SA-4.5V-1 Datasheet
  • 1: $4.42000
  • 40: $4.42000

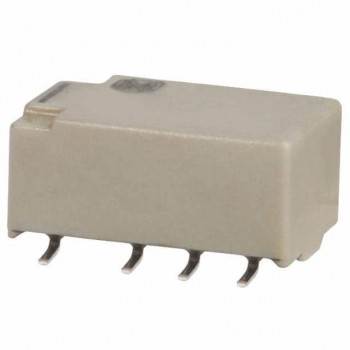

AGQ200S1H

RELAY TELECOM DPDT 2A 1.5VDC

AGQ200S1H Datasheet
  • 1: $4.44000
  • 10: $4.16300

TX2SA-L-24V-TH

RELAY GEN PURPOSE DPDT 2A 24V

TX2SA-L-24V-TH Datasheet
  • 1: $4.44000
  • 40: $4.44000

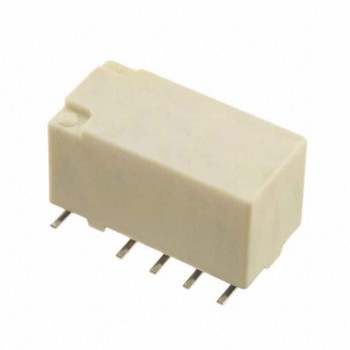

TX2SA-L-2.4V-TH
