AGN260S4H

Panasonic
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionRELAY TELECOM DPDT 1A 4.5VDC
  • Category
  • Datasheet AGN260S4H Datasheet
  • ECAD Model
  • Share
In Stock: 192

Can ship immediately

Pricing:
  • 1$5.86
  • 10$5.49
  • 25$4.88
  • 50$4.636
  • 100$4.392

Quote It

Technical Details

  • Series:AGN
  • Package:Tube
  • Part Status:Active
  • Mounting Type:Surface Mount
  • Coil Voltage:4.5VDC
  • Contact Form:DPDT (2 Form C)
  • Contact Rating (Current):1 A
  • Switching Voltage:125VAC, 110VDC - Max
  • Coil Current:22.2 mA
  • Coil Type:Non Latching
  • Features:-



  • Termination Style:Gull Wing
  • Seal Rating:-
  • Coil Insulation:-
  • Must Operate Voltage:3.6 VDC
  • Must Release Voltage:0.45 VDC
  • Operate Time:4 ms
  • Release Time:4 ms
  • Operating Temperature:-40°C ~ 70°C
  • Contact Material:Silver Palladium (AgPd), Gold (Au)
  • Relay Type:Telecom

Related Products


R74-11D1-5

RELAY DPDT 1AMP 5VDC

  • 1: $5.99000

DS1E-ML2-DC48V

RELAY GEN PURPOSE SPDT 2A 48VDC

DS1E-ML2-DC48V Datasheet
  • 1: $6.11800
  • 50: $6.11800

DS1E-S-DC12V-R

RELAY GEN PURPOSE SPDT 2A 12VDC

DS1E-S-DC12V-R Datasheet
  • 1: $6.17500
  • 50: $6.17500

DS1E-S-DC1.5V

RELAY GEN PURPOSE SPDT 2A 1.5VDC

DS1E-S-DC1.5V Datasheet
  • 1: $6.17500
  • 50: $6.17500

DS1E-S-DC24V-R

RELAY GEN PURPOSE SPDT 2A 24VDC

DS1E-S-DC24V-R Datasheet
  • 1: $6.17500
  • 50: $6.17500

DS1E-SL-DC48V

RELAY GEN PURPOSE SPDT 2A 48VDC

DS1E-SL-DC48V Datasheet
  • 1: $6.17500
  • 50: $6.17500

TXD2-24V-3

RELAY GEN PURPOSE DPDT 2A 24VDC

TXD2-24V-3 Datasheet
  • 1: $6.26000
  • 40: $6.26000

TXD2-24V-4

RELAY GEN PURPOS DPDT 10MA 24VDC

TXD2-24V-4 Datasheet
  • 1: $6.26000
  • 40: $6.26000

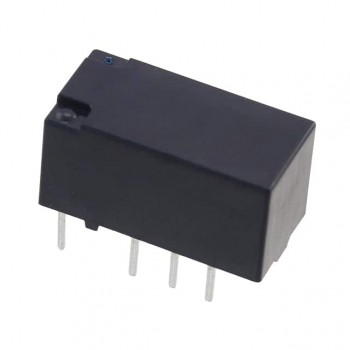

TXD2-L-24V-3
