TXD2SS-3V-6

Panasonic
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionRELAY GEN PURPOSE DPDT 2A 3VDC
  • Category
  • Datasheet TXD2SS-3V-6 Datasheet
  • ECAD Model
  • Share
In Stock: 107

Can ship immediately

Pricing:
  • 1$6.52
  • 40$6.52

Quote It

Technical Details

  • Series:TX-D
  • Package:Tube
  • Part Status:Active
  • Mounting Type:Surface Mount
  • Coil Voltage:3VDC
  • Contact Form:DPDT (2 Form C)
  • Contact Rating (Current):2 A
  • Switching Voltage:220VDC - Max
  • Coil Current:93.5 mA
  • Coil Type:Non Latching
  • Features:-



  • Termination Style:Gull Wing
  • Seal Rating:Sealed - Fully
  • Coil Insulation:-
  • Must Operate Voltage:2.25 VDC
  • Must Release Voltage:0.3 VDC
  • Operate Time:4 ms
  • Release Time:4 ms
  • Operating Temperature:-40°C ~ 85°C
  • Contact Material:Silver (Ag), Gold (Au)
  • Relay Type:General Purpose

Related Products


TXD2SS-3V-7

RELAY GEN PURPOSE DPDT 10MA 3VDC

TXD2SS-3V-7 Datasheet
  • 1: $6.52000
  • 40: $6.52000

R74-11D1-12SM

RELAY DPDT 1AMP 12VDC

  • 1: $6.62000

DS1E-SL2-DC12V-R

RELAY GEN PURPOSE SPDT 2A 12VDC

DS1E-SL2-DC12V-R Datasheet
  • 1: $6.65000
  • 50: $6.65000

DS1E-SL2-DC1.5V

RELAY GEN PURPOSE SPDT 2A 1.5VDC

DS1E-SL2-DC1.5V Datasheet
  • 1: $6.65000
  • 50: $6.65000

DS1E-SL2-DC3V-R

RELAY GEN PURPOSE SPDT 2A 3VDC

DS1E-SL2-DC3V-R Datasheet
  • 1: $6.65000
  • 50: $6.65000

DS1E-SL2-DC5V-R

RELAY GEN PURPOSE SPDT 2A 5VDC

DS1E-SL2-DC5V-R Datasheet
  • 1: $6.65000
  • 50: $6.65000

DS1E-SL2-DC6V

RELAY GEN PURPOSE SPDT 2A 6VDC

DS1E-SL2-DC6V Datasheet
  • 1: $6.65000
  • 50: $6.65000

DS1E-SL2-DC9V

RELAY GEN PURPOSE SPDT 2A 9VDC

DS1E-SL2-DC9V Datasheet
  • 1: $6.65000
  • 50: $6.65000

DS1E-SL2-DC9V-R

RELAY GEN PURPOSE SPDT 2A 9VDC

DS1E-SL2-DC9V-R Datasheet
  • 1: $6.65000
  • 50: $6.65000

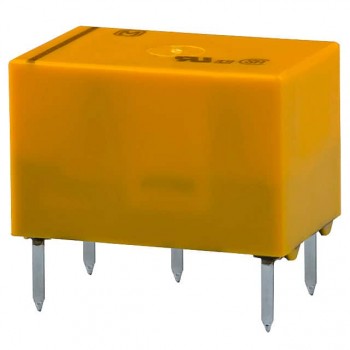

DS1E-SL-DC3V
