- Lifecycle status Active
- RoHS RoHS Compliant

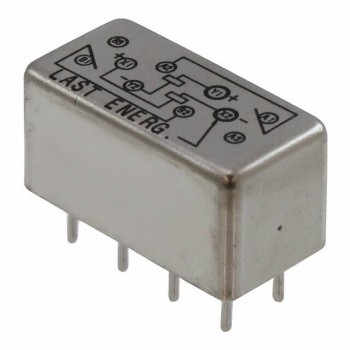

- DescriptionRELAY GEN PURPOS DPDT 2A 26.5VDC
- Category
- Datasheet LS-9520L Datasheet
-
ECAD Model
- Share
In Stock: 170
Can ship immediately
Pricing:
- 1$838.02
- 10$838.02
Quote It
Technical Details
- Series:LS, CII
- Package:Bulk
- Part Status:Active
- Mounting Type:Through Hole
- Coil Voltage:26.5VDC
- Contact Form:DPDT (2 Form C)
- Contact Rating (Current):2 A
- Switching Voltage:28VDC - Nom
- Coil Current:26.5 mA
- Coil Type:Latching, Dual Coil
- Features:-
- Termination Style:PC Pin
- Seal Rating:Sealed - Hermetically
- Coil Insulation:-
- Must Operate Voltage:13 VDC
- Must Release Voltage:-
- Operate Time:-
- Release Time:-
- Operating Temperature:-65°C ~ 125°C
- Contact Material:-
- Relay Type:General Purpose
