HC4ED-HTM-AC100V

Panasonic
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionRELAY GEN PURPOSE 4PDT 1A 100VAC
  • Category
  • Datasheet HC4ED-HTM-AC100V Datasheet
  • ECAD Model
  • Share
In Stock: 161

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:HCE
  • Package:Bulk
  • Part Status:Obsolete
  • Mounting Type:Socketable
  • Coil Voltage:100VAC
  • Contact Form:4PDT (4 Form C)
  • Contact Rating (Current):1 A
  • Switching Voltage:250VAC - Max
  • Coil Current:13.2 mA
  • Coil Type:Non Latching
  • Features:-



  • Termination Style:Plug In
  • Seal Rating:-
  • Coil Insulation:-
  • Must Operate Voltage:80 VAC
  • Must Release Voltage:30 VAC
  • Operate Time:20 ms
  • Release Time:20 ms
  • Operating Temperature:-40°C ~ 60°C
  • Contact Material:Silver Nickel (AgNi), Gold (Au)
  • Relay Type:General Purpose

Related Products


HC4ED-L-AC115V

RELAY GEN PURPOSE 4PDT 1A 115VAC

HC4ED-L-AC115V Datasheet

Call for price


HC4ED-L-AC24V

RELAY GEN PURPOSE 4PDT 1A 24VAC

HC4ED-L-AC24V Datasheet

Call for price


HC4ED-L-DC12V

RELAY GEN PURPOSE 4PDT 1A 12VDC

HC4ED-L-DC12V Datasheet

Call for price


HC4ED-L-DC24V

RELAY GEN PURPOSE 4PDT 1A 24VDC

HC4ED-L-DC24V Datasheet

Call for price


HD1E-M-DC1.5V

RELAY GEN PURPOSE SPDT 1A 1.5VDC

HD1E-M-DC1.5V Datasheet

Call for price


HD1E-M-DC3V

RELAY GEN PURPOSE SPDT 1A 3VDC

HD1E-M-DC3V Datasheet

Call for price


HD1E-M-DC9V

RELAY GEN PURPOSE SPDT 1A 9VDC

HD1E-M-DC9V Datasheet

Call for price


NF2EB-12V

RELAY GEN PURPOSE DPDT 2A 12VDC

NF2EB-12V Datasheet

Call for price


NF2EB-12V-A

RELAY GEN PURPOSE DPDT 2A 12VDC

NF2EB-12V-A Datasheet

Call for price

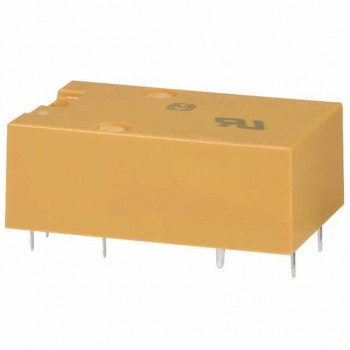

NF2EB-24V
