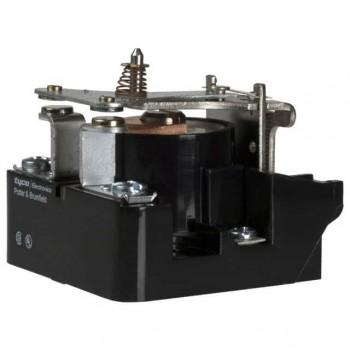

PRD-3AG0-120
TE Connectivity Potter & Brumfield Relays
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE SPST 30A 120V
- Category
- Datasheet PRD-3AG0-120 Datasheet
-
ECAD Model
- Share
In Stock: 223
Can ship immediately
Pricing:
- 1$40.14
- 10$38.133
- 25$36.126
- 50$34.119
- 100$32.112
- 250$30.105
Quote It
Technical Details
- Series:PRD
- Package:Bulk
- Part Status:Active
- Mounting Type:Chassis Mount
- Coil Voltage:120VAC
- Contact Form:SPST-NO (DM) (1 Form X)
- Contact Rating (Current):30 A
- Switching Voltage:277VAC - Nom
- Coil Current:85 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:Screw Terminal
- Seal Rating:-
- Coil Insulation:Class B
- Must Operate Voltage:102 VAC
- Must Release Voltage:12 VAC
- Operate Time:40 ms
- Release Time:20 ms
- Operating Temperature:-55°C ~ 45°C
- Contact Material:Silver Cadmium Oxide (AgCdO)
- Relay Type:General Purpose
