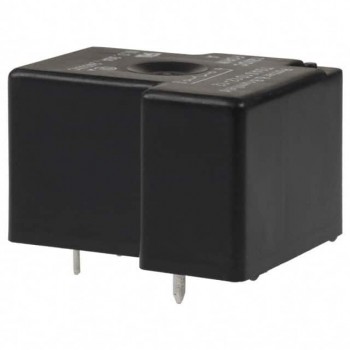

T9AS1D12-18
TE Connectivity Potter & Brumfield Relays
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE SPST 30A 18V
- Category
- Datasheet T9AS1D12-18 Datasheet
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
- 1$5.6
- 10$5.24837
- 25$4.66469
- 50$4.43146
- 100$4.19822
- 250$3.73175
- 500$3.49852
- 1,000$3.26529
Quote It
Technical Details
- Series:T9A
- Package:Bulk
- Part Status:Active
- Mounting Type:Through Hole
- Coil Voltage:18VDC
- Contact Form:SPST-NO (1 Form A)
- Contact Rating (Current):30 A
- Switching Voltage:277VAC - Max
- Coil Current:55.6 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:PC Pin
- Seal Rating:Sealed - Fully
- Coil Insulation:Class F
- Must Operate Voltage:13.5 VDC
- Must Release Voltage:1.8 VDC
- Operate Time:15 ms
- Release Time:15 ms
- Operating Temperature:-55°C ~ 85°C
- Contact Material:Silver Cadmium Oxide (AgCdO)
- Relay Type:General Purpose
