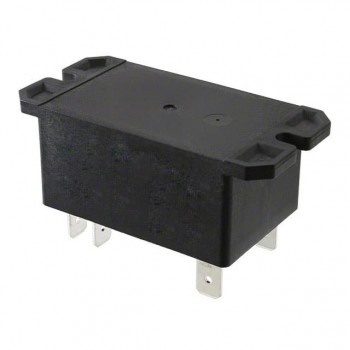

T92S7A22-120
TE Connectivity Potter & Brumfield Relays
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE DPST 30A 120V
- Category
- Datasheet T92S7A22-120 Datasheet
-
ECAD Model
- Share
In Stock: 198
Can ship immediately
Pricing:
- 1$21.25
- 10$18.8912
- 25$17.94663
- 50$17.00208
- 100$16.05752
- 250$15.70334
Quote It
Technical Details
- Series:T92
- Package:Bulk
- Part Status:Active
- Mounting Type:Chassis Mount
- Coil Voltage:120VAC
- Contact Form:DPST-NO (2 Form A)
- Contact Rating (Current):30 A
- Switching Voltage:277VAC - Nom
- Coil Current:33.3 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:Quick Connect - 0.250" (6.3mm)
- Seal Rating:-
- Coil Insulation:Class F
- Must Operate Voltage:96 VAC
- Must Release Voltage:12 VAC
- Operate Time:15 ms
- Release Time:15 ms
- Operating Temperature:-55°C ~ 65°C
- Contact Material:Silver Cadmium Oxide (AgCdO)
- Relay Type:General Purpose
