PCFN-112H2MG,000
TE Connectivity Potter & Brumfield Relays
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE SPST 26A 12V
- Category
- Datasheet PCFN-112H2MG,000 Datasheet
-
ECAD Model
- Share
In Stock: 135
Can ship immediately
Pricing:
- 1$9.5
- 20$8.90625
- 40$7.91667
- 60$7.52083
- 100$7.125
- 260$6.33333
- 500$5.9375
- 1,000$5.54167
Quote It
Technical Details
- Series:PCFN Solar, OEG
- Package:Tube
- Part Status:Active
- Mounting Type:Through Hole
- Coil Voltage:12VDC
- Contact Form:SPST-NO (1 Form A)
- Contact Rating (Current):26 A
- Switching Voltage:277VAC - Max
- Coil Current:125 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:PC Pin
- Seal Rating:Sealed - Flux Protection
- Coil Insulation:Class F
- Must Operate Voltage:7.8 VDC
- Must Release Voltage:1.2 VDC
- Operate Time:20 ms
- Release Time:10 ms
- Operating Temperature:-25°C ~ 75°C
- Contact Material:Silver Tin Oxide (AgSnO)
- Relay Type:General Purpose
Related Products

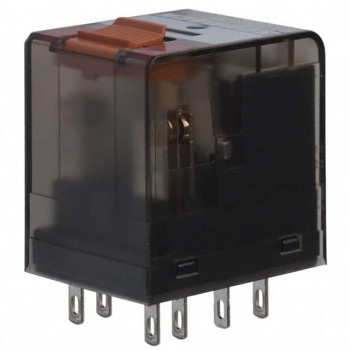

RELAY GEN PURP 3PDT 10A 24V AC
