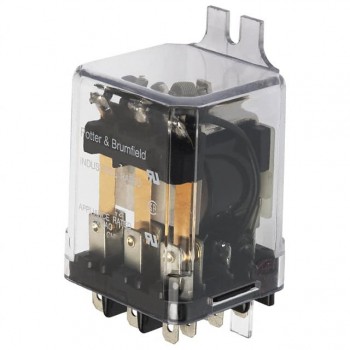

KUP-14AT5-24
TE Connectivity Potter & Brumfield Relays
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE 3PDT 10A 24V
- Category
- Datasheet KUP-14AT5-24 Datasheet
-
ECAD Model
- Share
In Stock: 103
Can ship immediately
Pricing:
- 1$28.52
- 10$25.34546
- 25$24.07819
- 50$22.81092
- 100$21.54365
- 250$19.64274
- 500$18.37546
Quote It
Technical Details
- Series:KUP
- Package:Tray
- Part Status:Active
- Mounting Type:Chassis Mount
- Coil Voltage:24VAC
- Contact Form:3PDT (3 Form C)
- Contact Rating (Current):10 A
- Switching Voltage:240VAC - Max
- Coil Current:115 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:Quick Connect - 0.187" (4.7mm)
- Seal Rating:-
- Coil Insulation:Class B
- Must Operate Voltage:20.4 VAC
- Must Release Voltage:-
- Operate Time:15 ms
- Release Time:10 ms
- Operating Temperature:-45°C ~ 45°C
- Contact Material:Silver Cadmium Oxide (AgCdO)
- Relay Type:General Purpose
