PTRA-1C-24C-T5-X

Picker Components
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • Description40A SPDT QC POWER RELAY 24VAC
  • Category
  • ECAD Model
  • Share
In Stock: 113

Can ship immediately

Pricing:
  • 1$3.43

Quote It

Technical Details

  • Series:-
  • Package:Bag
  • Part Status:Active
  • Mounting Type:Chassis Mount
  • Coil Voltage:24VDC
  • Contact Form:SPDT (1 Form C)
  • Contact Rating (Current):40 A
  • Switching Voltage:300VAC, 110VDC - Max
  • Coil Current:83.3 mA
  • Coil Type:Non Latching
  • Features:-



  • Termination Style:Quick Connect - 0.187"/0.250"
  • Seal Rating:-
  • Coil Insulation:Class F
  • Must Operate Voltage:18 VDC
  • Must Release Voltage:7.2 VDC
  • Operate Time:15 ms
  • Release Time:10 ms
  • Operating Temperature:-55°C ~ 100°C
  • Contact Material:Silver Cadmium Oxide (AgCdO)
  • Relay Type:General Purpose

Related Products


JTV1AG-TMP-12V

JTV RELAY 1 FORM A 12V

JTV1AG-TMP-12V Datasheet
  • 1: $3.45800
  • 50: $3.45800

JTV1AG-TMP-15V

JTV RELAY 1 FORM A 15V

JTV1AG-TMP-15V Datasheet
  • 1: $3.45800
  • 50: $3.45800

JTV1AG-TMP-18V

JTV RELAY 1 FORM A 18V

JTV1AG-TMP-18V Datasheet
  • 1: $3.45800
  • 50: $3.45800

JTV1AG-TMP-5V

JTV RELAY 1 FORM A 5V

JTV1AG-TMP-5V Datasheet
  • 1: $3.45800
  • 50: $3.45800

JTV1AG-TMP-6V

JTV RELAY 1 FORM A 6V

JTV1AG-TMP-6V Datasheet
  • 1: $3.45800
  • 50: $3.45800

JTV1AG-TMP-9V

JTV RELAY 1 FORM A 9V

JTV1AG-TMP-9V Datasheet
  • 1: $3.45800
  • 50: $3.45800

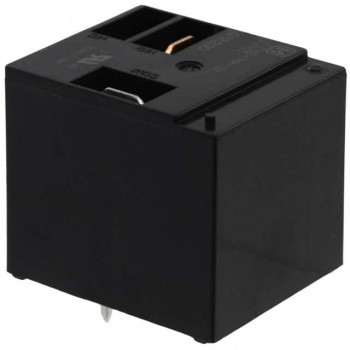

JTV1AS-TMP-15V

JTV RELAY 1 FORM A 15V

JTV1AS-TMP-15V Datasheet
  • 1: $3.45800
  • 50: $3.45800

JTV1AS-TMP-18V

JTV RELAY 1 FORM A 18V

JTV1AS-TMP-18V Datasheet
  • 1: $3.45800
  • 50: $3.45800

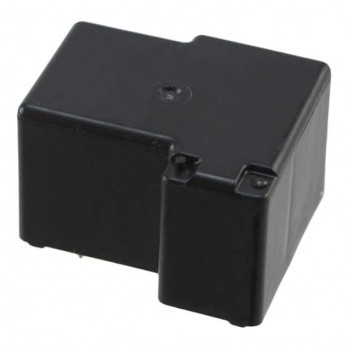

JTV1AS-TMP-5V
