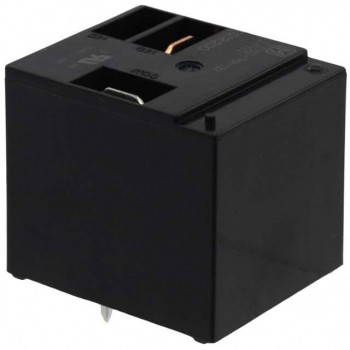

JTV1G-TMP-18V
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionJTV RELAY 1 FORM C 18V
- Category
- Datasheet JTV1G-TMP-18V Datasheet
-
ECAD Model
- Share
In Stock: 196
Can ship immediately
Pricing:
- 1$3.667
- 50$3.667
Quote It
Technical Details
- Series:JT-V
- Package:Box
- Part Status:Not For New Designs
- Mounting Type:Through Hole
- Coil Voltage:18VDC
- Contact Form:SPDT (1 Form C)
- Contact Rating (Current):20 A
- Switching Voltage:277VAC - Max
- Coil Current:55.6 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:PC Pin, Quick Connect - 0.250" (6.3mm)
- Seal Rating:-
- Coil Insulation:Class F
- Must Operate Voltage:13.5 VDC
- Must Release Voltage:1.8 VDC
- Operate Time:15 ms
- Release Time:10 ms
- Operating Temperature:-55°C ~ 85°C
- Contact Material:Silver Tin Oxide (AgSnO)
- Relay Type:General Purpose
Related Products

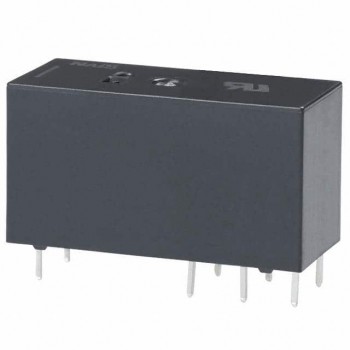

40 AMP PCB POWER RELAY
