• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionRELAY GEN PURPOSE SPST 5A 5V
  • Category
  • Datasheet SDT-S-105LMR,000 Datasheet
  • ECAD Model
  • Share
In Stock: 171

Can ship immediately

Pricing:
  • 1$0.92408
  • 1,000$0.86363

Quote It

Technical Details

  • Series:SDT-R, OEG
  • Package:Tube
  • Part Status:Active
  • Mounting Type:Through Hole
  • Coil Voltage:5VDC
  • Contact Form:SPST-NO (1 Form A)
  • Contact Rating (Current):5 A
  • Switching Voltage:250VAC, 30VDC - Max
  • Coil Current:50 mA
  • Coil Type:Non Latching
  • Features:-



  • Termination Style:PC Pin
  • Seal Rating:-
  • Coil Insulation:Class E
  • Must Operate Voltage:3.75 VDC
  • Must Release Voltage:0.5 VDC
  • Operate Time:15 ms
  • Release Time:5 ms
  • Operating Temperature:-30°C ~ 70°C
  • Contact Material:Silver Tin Oxide (AgSnO)
  • Relay Type:General Purpose

Related Products


G5LE-1 DC18

RELAY GEN PURPOSE SPDT 10A 18V

G5LE-1 DC18 Datasheet
  • 1: $0.93300
  • 500: $0.90586

G5LE-1A4-ASI DC24

RELAY GEN PURPOSE SPST 10A 24V

G5LE-1A4-ASI DC24 Datasheet
  • 1: $0.95446
  • 500: $0.92670

G5LE-14-36 DC9

RELAY GEN PURPOSE SPDT 10A 9V

G5LE-14-36 DC9 Datasheet
  • 1: $0.98430
  • 500: $0.95566

G5LE-14 DC18

RELAY GEN PURPOSE SPDT 10A 18V

G5LE-14 DC18 Datasheet
  • 1: $0.98430
  • 500: $0.95566

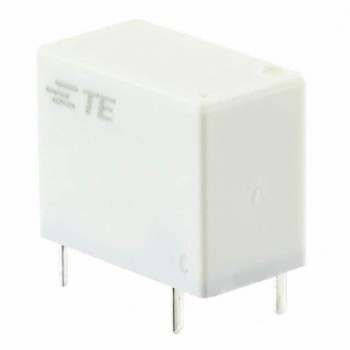

OJ-SH-106LMH,000

RELAY GENERAL PURPOSE SPST 8A 6V

OJ-SH-106LMH,000 Datasheet
  • 1: $0.98928
  • 1000: $0.92456

OJ-SH-105DM,000

RELAY GENERAL PURPOSE SPST 5A 5V

OJ-SH-105DM,000 Datasheet
  • 1: $0.98928
  • 1000: $0.92456

OJ-SS-112LMH2,005

RELAY GEN PURP

  • 1: $0.98928
  • 1000: $0.92456

OJE-SH-105LMH,000

OJE-SH-105LMH,000

OJE-SH-105LMH,000 Datasheet
  • 1: $0.98928
  • 1000: $0.92456

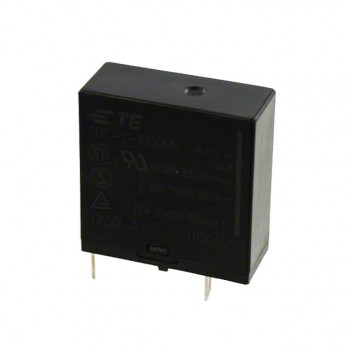

SDT-S-105LMR2,000
