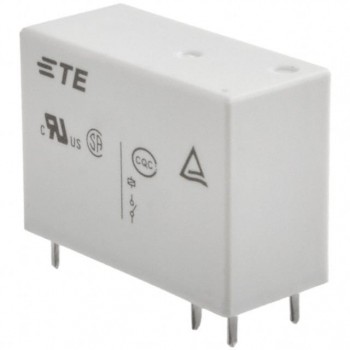

OZ-SH-105LM1,294
TE Connectivity Potter & Brumfield Relays
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE SPST 16A 5V
- Category
- Datasheet OZ-SH-105LM1,294 Datasheet
-
ECAD Model
- Share
In Stock: 172
Can ship immediately
Pricing:
- 1$1.39965
- 2,000$1.39965
Quote It
Technical Details
- Series:OZ, OEG
- Package:Tube
- Part Status:Active
- Mounting Type:Through Hole
- Coil Voltage:5VDC
- Contact Form:SPST-NO (1 Form A)
- Contact Rating (Current):16 A
- Switching Voltage:240VAC, 24VDC - Max
- Coil Current:106 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:PC Pin
- Seal Rating:Sealed - Fully
- Coil Insulation:Class A
- Must Operate Voltage:3.75 VDC
- Must Release Voltage:0.25 VDC
- Operate Time:20 ms
- Release Time:8 ms
- Operating Temperature:-30°C ~ 70°C
- Contact Material:Silver Tin Oxide (AgSnO)
- Relay Type:General Purpose
