• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionRELAY GEN PURPOSE DPDT 20A 12V
  • Category
  • Datasheet PRD-11DJ0-12 Datasheet
  • ECAD Model
  • Share
In Stock: 137

Can ship immediately

Pricing:
  • 1$95.92
  • 40$85.488

Quote It

Technical Details

  • Series:PRD
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Chassis Mount
  • Coil Voltage:12VDC
  • Contact Form:DPDT (2 Form C)
  • Contact Rating (Current):20 A
  • Switching Voltage:125VDC - Nom
  • Coil Current:169 mA
  • Coil Type:Non Latching
  • Features:-



  • Termination Style:Screw Terminal
  • Seal Rating:-
  • Coil Insulation:Class B
  • Must Operate Voltage:9 VDC
  • Must Release Voltage:1.2 VDC
  • Operate Time:40 ms
  • Release Time:20 ms
  • Operating Temperature:-55°C ~ 80°C
  • Contact Material:Silver Cadmium Oxide (AgCdO)
  • Relay Type:General Purpose

Related Products


9-1393806-2

RELAY GEN PURPOSE DPST 5A 24V

9-1393806-2 Datasheet
  • 1: $96.43200
  • 25: $83.01120

R10-E7X6-J1.0K

RELAY GEN PURPOSE 6PDT 5A 12V

R10-E7X6-J1.0K Datasheet
  • 1: $96.48451
  • 350: $88.31700

2947653

RELAY GEN PURPOSE SPDT 230V

  • 1: $96.60000
  • 10: $96.60000

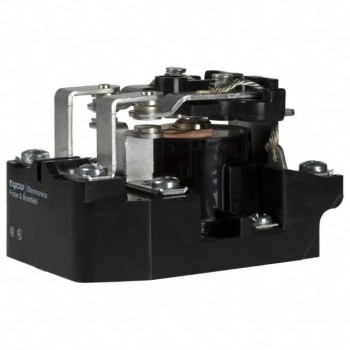

PRD-11AJ0-24
