DSP1-DC9V
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GENERAL PURPOSE DPST 5A 9V
- Category
- Datasheet DSP1-DC9V Datasheet
-
ECAD Model
- Share
In Stock: 200
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:DSP
- Package:Bulk
- Part Status:Obsolete
- Mounting Type:Through Hole
- Coil Voltage:9VDC
- Contact Form:DPST-NO/NC (1 Form A, 1 Form B)
- Contact Rating (Current):5 A
- Switching Voltage:250VAC, 30VDC - Max
- Coil Current:33.3 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:PC Pin
- Seal Rating:Sealed - Fully
- Coil Insulation:-
- Must Operate Voltage:7.2 VDC
- Must Release Voltage:0.9 VDC
- Operate Time:10 ms
- Release Time:5 ms
- Operating Temperature:-40°C ~ 65°C
- Contact Material:Silver Tin Oxide (AgSnO)
- Relay Type:General Purpose
Related Products
RELAY GEN PURPOSE DPDT 7A 120V
Call for price

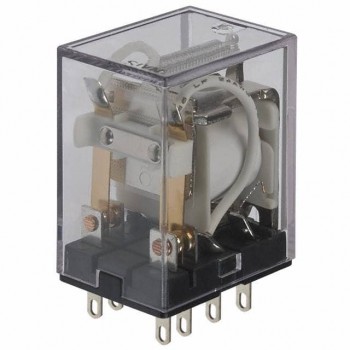

RELAY GEN PURPOSE DPDT 7A 240V
