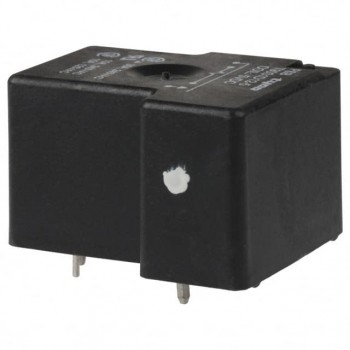

T90N1D12-12
TE Connectivity Potter & Brumfield Relays
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE SPST 30A 12V
- Category
- Datasheet T90N1D12-12 Datasheet
-
ECAD Model
- Share
In Stock: 177
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:T90
- Package:Bulk
- Part Status:Obsolete
- Mounting Type:Through Hole
- Coil Voltage:12VDC
- Contact Form:SPST-NO (1 Form A)
- Contact Rating (Current):30 A
- Switching Voltage:240VAC, 28VDC - Max
- Coil Current:77 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:PC Pin
- Seal Rating:-
- Coil Insulation:Class F
- Must Operate Voltage:9 VDC
- Must Release Voltage:1.2 VDC
- Operate Time:15 ms
- Release Time:15 ms
- Operating Temperature:-55°C ~ 85°C
- Contact Material:Silver Cadmium Oxide (AgCdO)
- Relay Type:General Purpose
