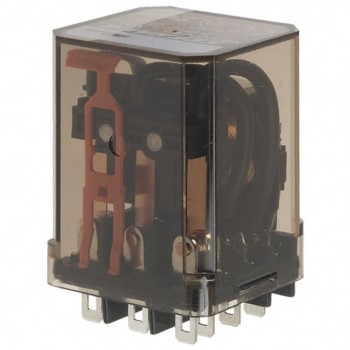

PCLH-203A1S,000
TE Connectivity Potter & Brumfield Relays
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE DPDT 15A 24V
- Category
- Datasheet PCLH-203A1S,000 Datasheet
-
ECAD Model
- Share
In Stock: 195
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PCLH, OEG
- Package:Tray
- Part Status:Obsolete
- Mounting Type:Socketable
- Coil Voltage:24VAC
- Contact Form:DPDT (2 Form C)
- Contact Rating (Current):15 A
- Switching Voltage:120VAC - Max
- Coil Current:-
- Coil Type:Non Latching
- Features:-
- Termination Style:Plug In, Quick Connect - 0.187" (4.7mm)
- Seal Rating:-
- Coil Insulation:Class F
- Must Operate Voltage:19.2 VAC
- Must Release Voltage:7.2 VAC
- Operate Time:20 ms
- Release Time:20 ms
- Operating Temperature:-40°C ~ 55°C
- Contact Material:Silver Cadmium Oxide (AgCdO)
- Relay Type:General Purpose
