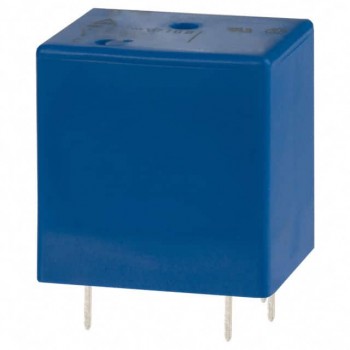

V23057B 2A401
TE Connectivity Potter & Brumfield Relays
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE SPDT 8A 12V
- Category
- Datasheet V23057B 2A401 Datasheet
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
- 1$12.44
- 10$11.06
- 25$10.5072
- 50$9.954
- 100$9.401
- 250$8.57152
- 500$8.0185
- 1,000$7.60375
Quote It
Technical Details
- Series:V23057, SCHRACK
- Package:Tube
- Part Status:Obsolete
- Mounting Type:Through Hole
- Coil Voltage:12VDC
- Contact Form:SPDT (1 Form C)
- Contact Rating (Current):8 A
- Switching Voltage:400VAC - Max
- Coil Current:36.3 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:PC Pin
- Seal Rating:-
- Coil Insulation:-
- Must Operate Voltage:8 VDC
- Must Release Voltage:1.2 VDC
- Operate Time:7 ms
- Release Time:3 ms
- Operating Temperature:-40°C ~ 70°C
- Contact Material:Silver Cadmium Oxide (AgCdO)
- Relay Type:General Purpose
