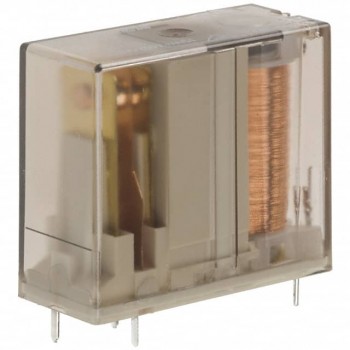

T9AV1D12-12
TE Connectivity Potter & Brumfield Relays
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE SPST 30A 12V
- Category
- Datasheet T9AV1D12-12 Datasheet
-
ECAD Model
- Share
In Stock: 152
Can ship immediately
Pricing:
- 1$3.93
- 10$3.686
- 25$3.276
- 50$3.1122
- 100$2.9484
- 250$2.6208
Quote It
Technical Details
- Series:T9A
- Package:Bulk
- Part Status:Obsolete
- Mounting Type:Through Hole
- Coil Voltage:12VDC
- Contact Form:SPST-NO (1 Form A)
- Contact Rating (Current):30 A
- Switching Voltage:277VAC - Max
- Coil Current:83 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:PC Pin
- Seal Rating:Sealed - Flux Protection
- Coil Insulation:Class F
- Must Operate Voltage:9 VDC
- Must Release Voltage:1.2 VDC
- Operate Time:15 ms
- Release Time:15 ms
- Operating Temperature:-55°C ~ 85°C
- Contact Material:Silver Cadmium Oxide (AgCdO)
- Relay Type:General Purpose
