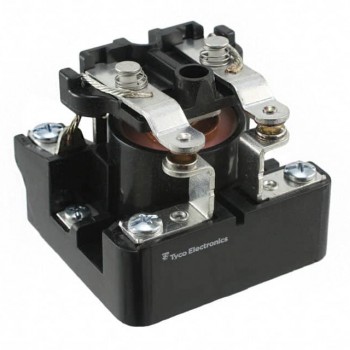

OMIF-S-124LM,300
TE Connectivity Potter & Brumfield Relays
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE SPST 20A 24V
- Category
- Datasheet OMIF-S-124LM,300 Datasheet
-
ECAD Model
- Share
In Stock: 143
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:OMIF, OEG
- Package:Bulk
- Part Status:Obsolete
- Mounting Type:Through Hole
- Coil Voltage:24VDC
- Contact Form:SPST-NO (1 Form A)
- Contact Rating (Current):20 A
- Switching Voltage:250VAC, 30VDC - Max
- Coil Current:22.5 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:PC Pin, Quick Connect - 0.187" (4.7mm)
- Seal Rating:Sealed - Flux Protection
- Coil Insulation:Class F
- Must Operate Voltage:18 VDC
- Must Release Voltage:1.2 VDC
- Operate Time:20 ms
- Release Time:10 ms
- Operating Temperature:-30°C ~ 85°C
- Contact Material:Silver Tin Oxide (AgSnO)
- Relay Type:General Purpose
