- Lifecycle status Active
- RoHS RoHS Compliant

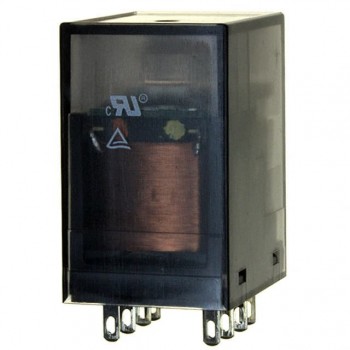

- DescriptionRELAY GEN PURPOSE DPDT 12A 24V
- Category
- Datasheet PT22A524B Datasheet
-
ECAD Model
- Share
In Stock: 113
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PTH, SCHRACK
- Package:Bulk
- Part Status:Obsolete
- Mounting Type:Socketable
- Coil Voltage:24VAC
- Contact Form:DPDT (2 Form C)
- Contact Rating (Current):12 A
- Switching Voltage:440VAC - Max
- Coil Current:41.6 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:Plug In
- Seal Rating:-
- Coil Insulation:-
- Must Operate Voltage:38.4 VAC
- Must Release Voltage:7.2 VAC
- Operate Time:20 ms
- Release Time:20 ms
- Operating Temperature:-45°C ~ 70°C
- Contact Material:Silver Nickel (AgNi)
- Relay Type:General Purpose
