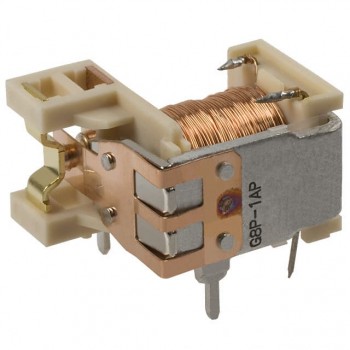

G8P1A4TPDC18
Omron Electronics Components
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE SPST 30A 18V
- Category
- Datasheet G8P1A4TPDC18 Datasheet
-
ECAD Model
- Share
In Stock: 136
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:G8P
- Package:Bulk
- Part Status:Obsolete
- Mounting Type:Through Hole
- Coil Voltage:18VDC
- Contact Form:SPST-NO (1 Form A)
- Contact Rating (Current):30 A
- Switching Voltage:250VAC, 28VDC - Max
- Coil Current:50 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:PC Pin, Quick Connect - 0.250" (6.3mm)
- Seal Rating:Sealed - Fully
- Coil Insulation:Class F
- Must Operate Voltage:13.5 VDC
- Must Release Voltage:1.8 VDC
- Operate Time:15 ms
- Release Time:10 ms
- Operating Temperature:-55°C ~ 105°C
- Contact Material:Silver Cadmium Oxide (AgCdO)
- Relay Type:General Purpose
