- Lifecycle status Active
- RoHS RoHS Compliant

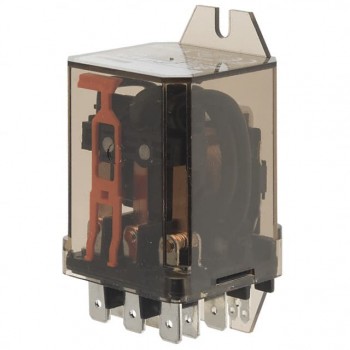

- DescriptionRELAY GEN PURPOSE 3PDT 16A 48V
- Category
- Datasheet RM735548 Datasheet
-
ECAD Model
- Share
In Stock: 122
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:RM, SCHRACK
- Package:Tray
- Part Status:Obsolete
- Mounting Type:Chassis Mount
- Coil Voltage:48VAC
- Contact Form:3PDT (3 Form C)
- Contact Rating (Current):16 A
- Switching Voltage:440VAC - Max
- Coil Current:-
- Coil Type:Non Latching
- Features:Mechanical Indicator, Test Button
- Termination Style:Quick Connect - 0.250" (6.3mm)
- Seal Rating:-
- Coil Insulation:-
- Must Operate Voltage:38.4 VAC
- Must Release Voltage:14.4 VAC
- Operate Time:15 ms
- Release Time:10 ms
- Operating Temperature:-45°C ~ 60°C
- Contact Material:Silver Cadmium Oxide (AgCdO)
- Relay Type:General Purpose
